V311 Upgrade Tool
Upgrade function
Preparation conditions: “A TYPE-C data cable, a Windows computer and a device link
Download the upgrade software "UPDATA.exe", the software can be downloaded from www.elm327.

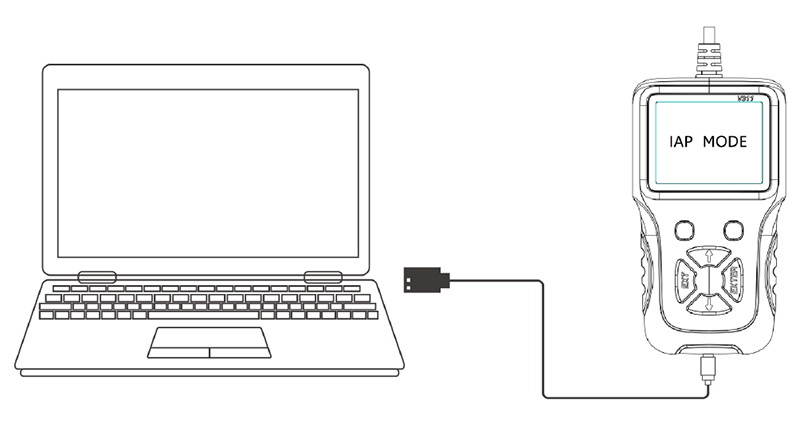

Press and hold the “down button” of the host and insert the type-c cable into the USB port on the computer. The device enters the upgrade mode “IAP MODE” as shown below.
After the TYPE-C cable is plugged into the computer, the driver software will be installed automatically. For example, the serial port shown below is COM12.
Open the upgrade tool and select the serial port. Open the serial port and you will be prompted to open the serial port successfully.
After the TYPE-C cable is plugged into the computer, the driver software will be installed automatically. For example, the serial port shown below is COM12.
Open the upgrade tool and select the serial port. Open the serial port and you will be prompted to open the serial port successfully.
Select the upgrade package as "VC311_UPDATA.bin"
Click to start the upgrade, the upgrade progress bar will be displayed, indicating that the upgrade is successful.
